• T-shaped filter, suitable for use in pipelines carrying corrosive media.
• Compact installation size, high flow capacity, and low flow resistance.
• Easy to replace the filter screen; impurities are retained inside the screen.
• Suitable for both horizontal and vertical pipelines; pay attention to the flow direction during installation.
| No. | Parts | Materials |
|---|---|---|
| 1 | Bonnet | FRPP, PPH, UPVC, CPVC, PVDF |
| 2 | Body | FRPP, PPH, UPVC, CPVC, PVDF |
| 3 | Support | FRPP, PPH, PVDF |
| 4 | Cushion | EPDM, FPM, PTFE |
| 5 | Stud Bolt & Nut | Steel, Stainless Steel |
| 6 | Screen | FRPP, PPH, PVDF |

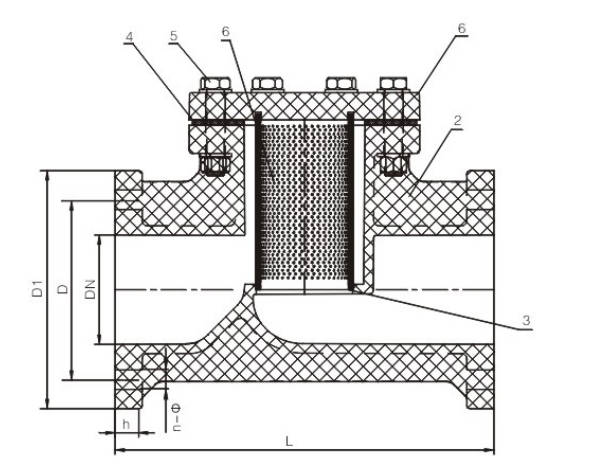

| DN | D (mm) | D1 (mm) | L (mm) | h (mm) | n | Φ (mm) | Perforation Size (mm) | Working Pressure (MPa) |
|---|---|---|---|---|---|---|---|---|
| 25 | 85 | 115 | 160 | 16 | 4 | 14 | 2 | 0.6 |
| 32 | 100 | 140 | 180 | 16 | 4 | 18 | 2 | 0.6 |
| 40 | 110 | 150 | 200 | 18 | 4 | 18 | 2 | 0.6 |
| 50 | 125 | 165 | 230 | 18 | 4 | 18 | 2 | 0.6 |
| 65 | 145 | 185 | 290 | 22 | 4 | 18 | 2 | 0.6 |
| 80 | 160 | 200 | 310 | 25 | 8 | 18 | 2 | 0.6 |
| 100 | 180 | 220 | 350 | 25 | 8 | 18 | 2 | 0.6 |
| 125 | 210 | 250 | 400 | 30 | 8 | 18 | 2 | 0.6 |
| 150 | 240 | 285 | 480 | 30 | 8 | 22 | 2 | 0.6 |
Step 1: Order and Design
Confirm the dimensions, pressure rating, connection type (flange/threaded), and filtration precision of the T-type filter based on customer requirements; complete the 3D structural design and flow path optimization to ensure filtration efficiency and structural integrity.

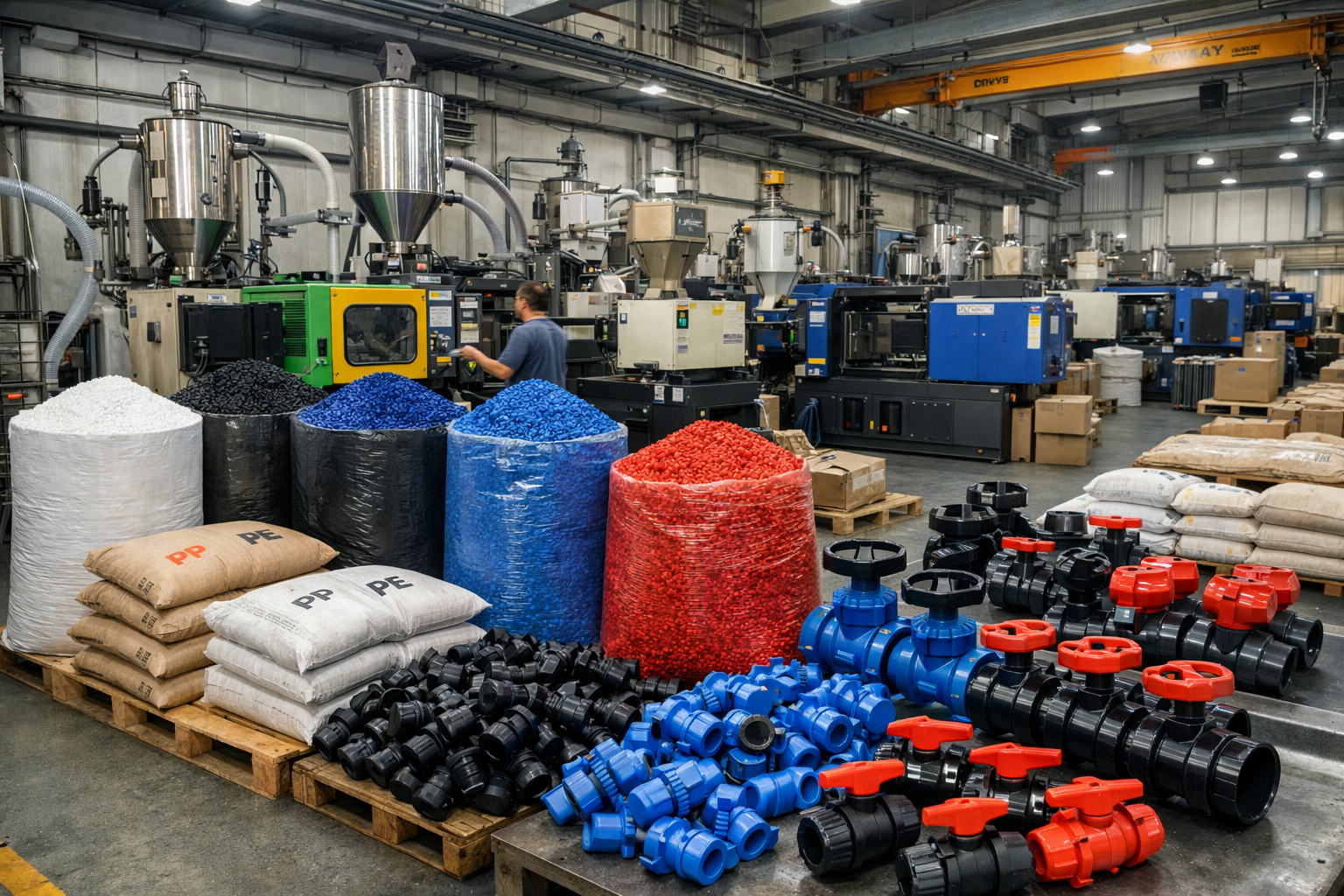

Step 2: Raw Material Preparation & Molding
Select high-quality raw materials such as PVC, CPVC, or PP to injection mold or compression mold the T-type filter housing; strictly control temperature and pressure to ensure product density and surface finish.
Step 3: Machining
Perform precision machining on the molded T-type filter, including flange face turning, sealing surface treatment, thread cutting, and internal finishing of the filtration chamber, to ensure dimensional accuracy and sealing performance.

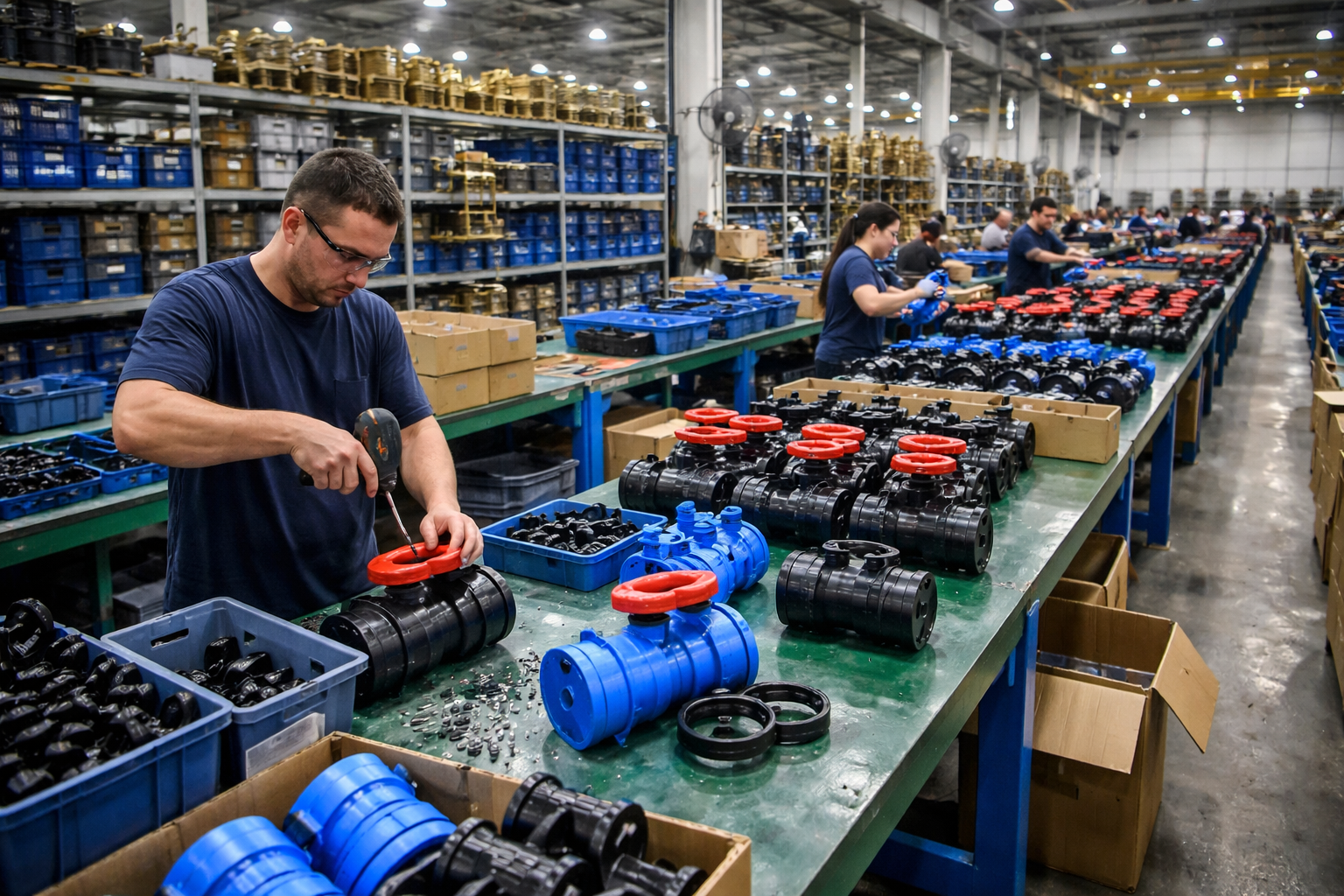

Step 4: Assembly
Install the filter screen (stainless steel or plastic), sealing ring, and cover plate to assemble the T-type filter as a whole; ensure all components fit tightly with no risk of leakage.
Step 5: Testing & Quality Assurance
The T-type filter undergoes pressure testing, seal testing, and water flow testing to verify filtration effectiveness and structural strength; all products must comply with relevant industry standards.
Step 6: Finishing, Packaging and Shipment
The product is cleaned, labeled, and inspected for appearance. Packaging (shock- and moisture-proof) is completed, and arrangements are made for warehousing and shipment to ensure product safety during transit.
Widely used in the chemical, petroleum, district heating, refrigeration, air separation, light industry and food, and pharmaceutical sectors
These valves are widely used in:
Oil and Gas
Chemical Processing
Power Plants
Water Treatment
Metallurgy and Mining
Agriculture and Irrigation
Superior Quality
Our valves are produced from high-grade materials and subjected to strict quality inspections to guarantee dependable performance in challenging industrial environments.
Advanced Technology

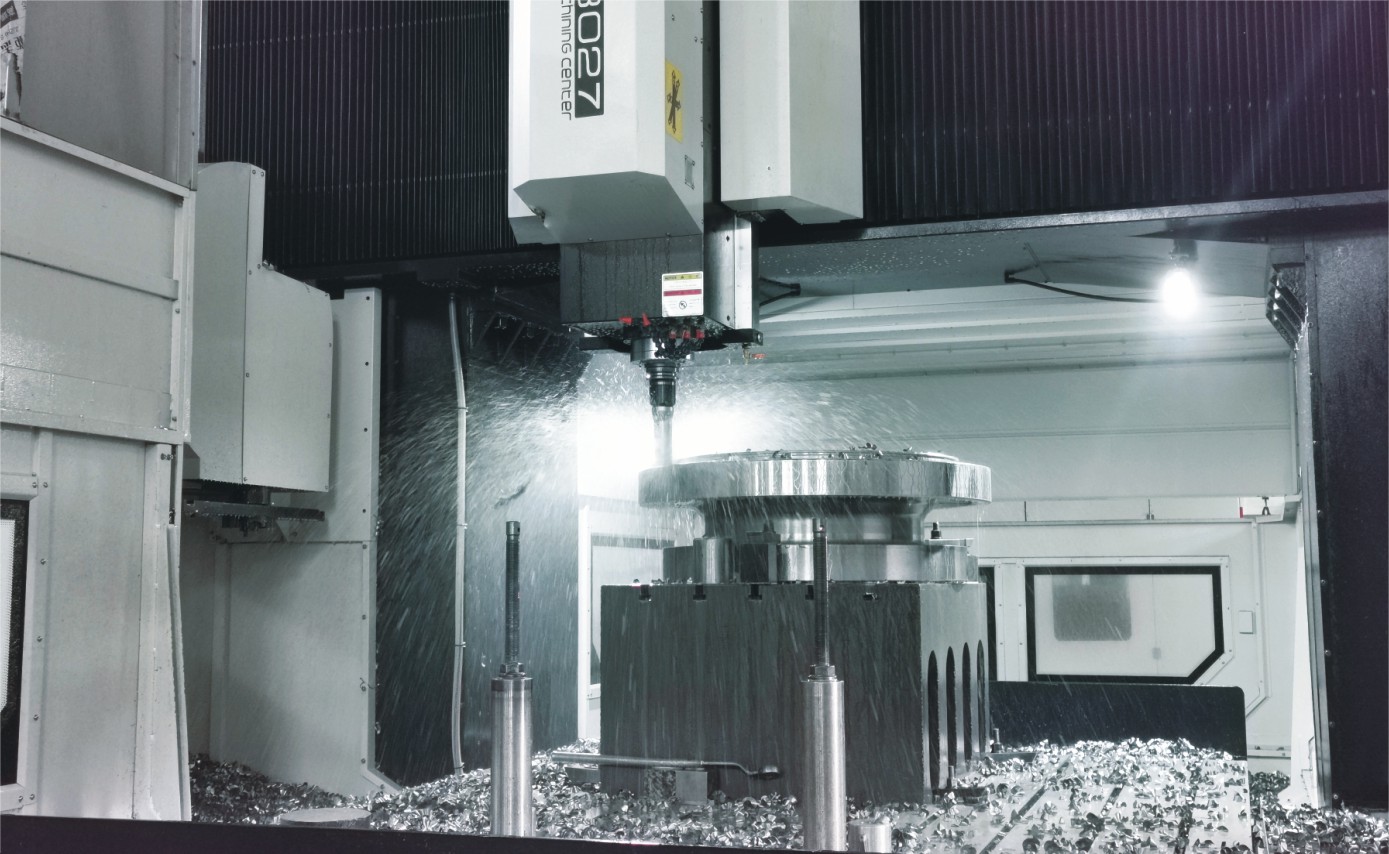

With cutting-edge CNC machining systems and high-precision manufacturing equipment, we ensure valves are made with outstanding accuracy and uniformity.
Competitive Pricing
By streamlining production processes and sourcing materials in bulk, we provide premium-quality valves at competitive prices while maintaining excellent standards.
Expert Support
Our skilled technical team offers full support from product selection through after-sales service, helping ensure the best valve performance for your application.
